Winch Machine
A winch is a mechanical device used to wind up or wind out a rope or wire rope (also called ‘cable’) under tension. It is commonly used to pull in (wind up) or let out (wind out) or otherwise adjust the tension of a rope or cable. Winches are critical components in heavy-duty operations such as lifting, hauling, and towing in industries like construction, shipping, mining, manufacturing, oil and gas, and transportation.
Key Components of a Winch Machine
- Drum: The rotating cylinder that stores and moves the rope or wire rope.
- Gearbox: Reduces speed and increases torque output from the motor.
- Motor: Powers the winch—can be electric, hydraulic, pneumatic, or combustion.
- Braking System: Holds the load when the motor is off or during power failure.
- Frame: Structural support for mounting and operation.
- Rope: Steel wire rope or synthetic rope used to move the load.
- Control System: Manual levers, push buttons, or remote control mechanisms.
Types of Winch Machine
Winches are categorized based on their power source and application:
Electric Winch
Powered by electric motors, used in indoor or stable power environments.

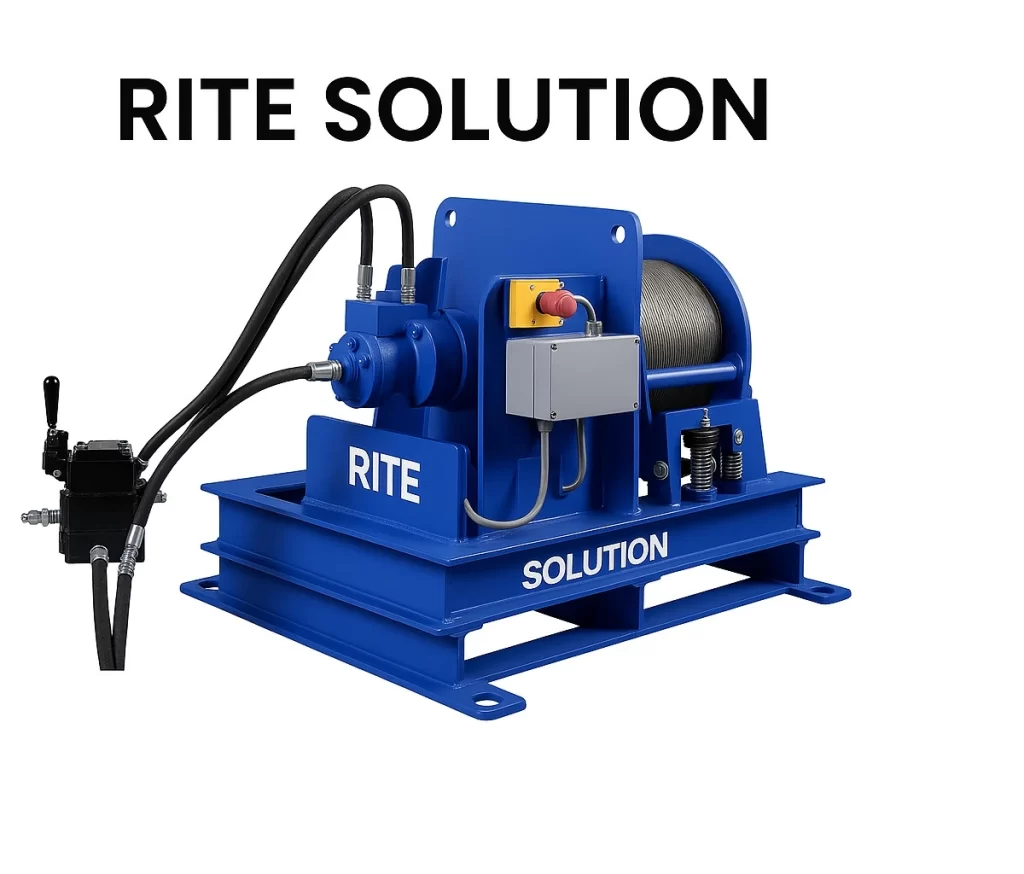

Hydraulic Winch
Uses hydraulic fluid pressure; ideal for continuous and heavy-duty tasks.

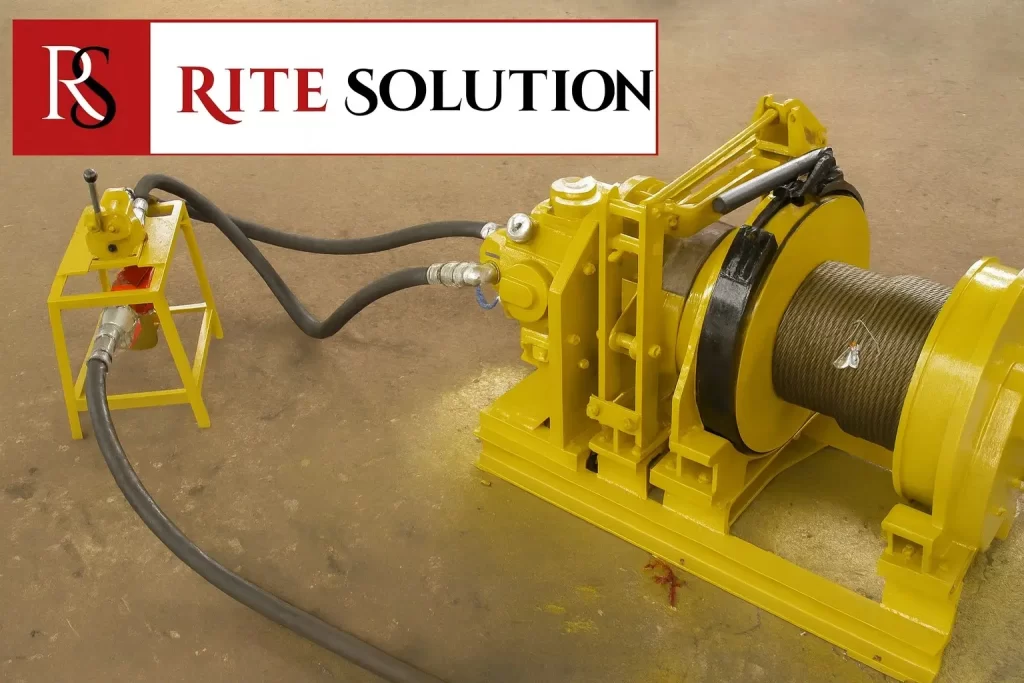

Pneumatic Winch
Operated by compressed air, suited for explosive environments.
Manual Winch
Hand-operated; suitable for low-load and remote locations.
Engine-Driven Winch
Powered by diesel or petrol engines; used where electricity is unavailable.
Portable Winch
Lightweight, mobile winches for off-site lifting or pulling.
Mooring & Marine Winches
Specialized for ship anchoring, mooring, or towing operations.
Applications
- Construction: Concrete lifting, shuttering movement, tower crane auxiliary
- Marine: Anchor winching, tugboat towing, offshore load handling
- Mining: Cable hauling, shaft lowering, ore lifting
- Industrial Manufacturing: Line pulling, hoisting machines
- Rescue Services: Vehicle recovery, slope rescue
- Railways & Defense: Track laying, bunker supplies, bridge lifting
Safety Mechanisms in Modern Winches
- Emergency Brake Release
- Overload Protection Device
- Limit Switches (upper/lower)
- Drum Guard and Rope Tensioning System
- Load Monitoring Sensors
- Auto-stop in power failure conditions
- Enclosed Gearboxes to prevent contamination

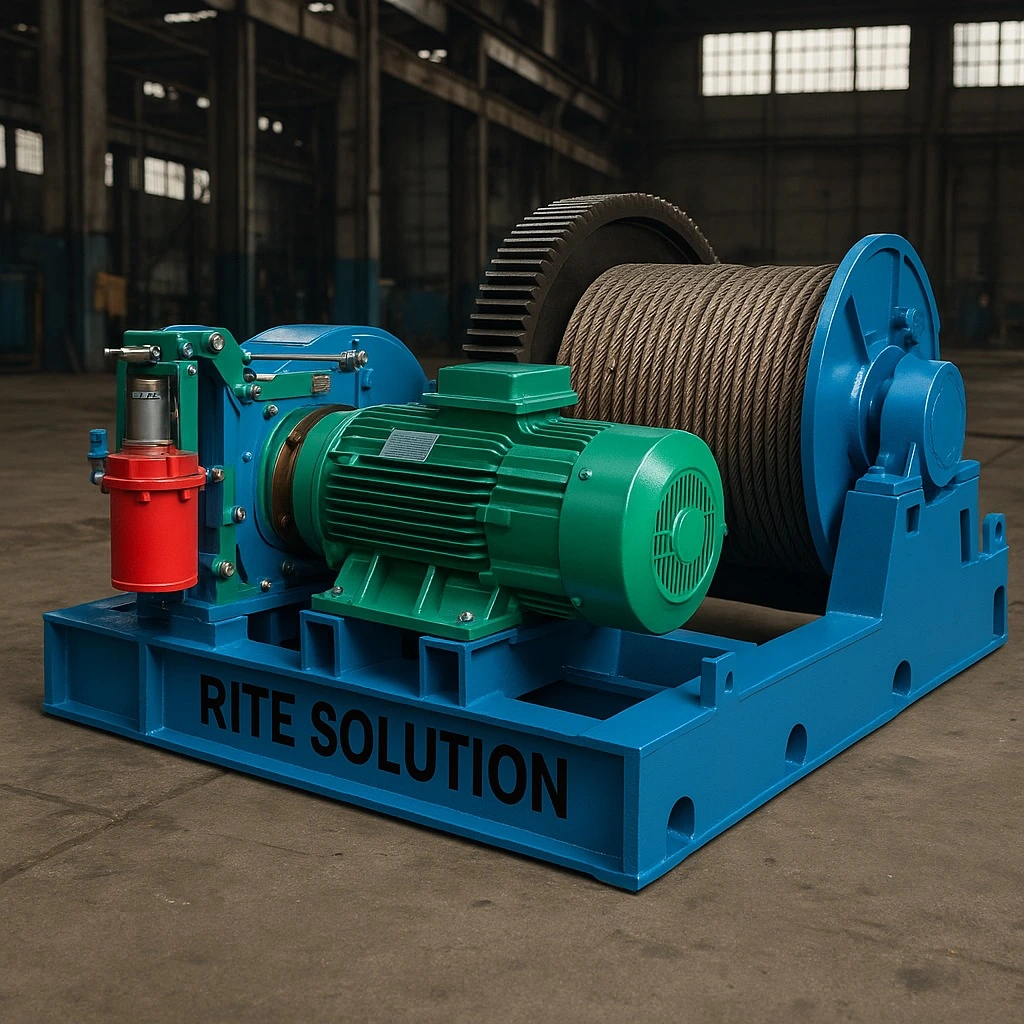

We are offering our customers Electric Winch Machine in India. We are a Manufacturer & Supplier of Electric Winch Machine 5 Ton .
| Specification | Detail |
|---|---|
| Load Capacity | 5 tons (5000 kg) |
| Lifting Speed | 8-12 meters per minute |
| Power Rating | 7.5-11 kW |
| Cable Length | Up to 100 meters |
We are offering our customers Electric Winch Machine in India. We are a Manufacturer & Supplier of Electric Winch Machine 10 Ton.
| Specification | Details |
|---|---|
| Load Capacity | 10 tons |
| Lifting Speed | 5-15 meters per minute |
| Power Supply | 380V, 50Hz, 3-phase |
| Motor Power | 15 kW |
Frequently Asked Questions
What is an Electric Winch Machine?
An electric winch machine is a device used to lift or pull heavy loads by winding a cable or rope around a drum using electric power.
What are the applications of Rite Solution's electric winch?
Rite Solution’s electric winches are used in construction, marine, mining, and industrial applications for material handling and towing.
What capacities are available?
Rite Solution offers electric winch machines with different load capacities ranging from 500 kg to several tons.
Are the winches customizable?
Yes, Rite Solution provides customization options to meet specific requirements like speed, power, and load capacity.
What maintenance is required?
Regular inspections, lubrication, and checking the cable or rope condition ensure optimal performance and longevity of the winch.
What power sources are compatible?
Rite Solution’s electric winches can be operated on standard electric power supplies, usually 220V or 440V, depending on the model.
Is after-sales support available?
Yes, Rite Solution provides excellent customer service, including installation support, maintenance services, and spare parts availability.
